Advanced Multi-Channel Infusion for MRI Environments

The MedCaptain HP-80 MRI Infusion Workstation is a specialised, high-performance system engineered for safe, accurate, and uninterrupted medication delivery within MRI environments.

Designed for use in diagnostic MRI and intra-operative MRI-guided procedures, the HP-80 enables continuous infusion of critical medications without compromising imaging quality or patient safety.

This is a true clinical-grade solution built for hospitals, surgical suites, and advanced imaging facilities where precision and reliability are non-negotiable.

Built Specifically for MRI Environments

Traditional infusion systems are not suitable for MRI use due to strong magnetic interference.

The HP-80 solves this with a shielded, MRI-compatible workstation design, allowing safe operation in:

• 1.5 Tesla MRI systems
• 3.0 Tesla MRI systems
• Magnetic field environments up to 20mT

This ensures no interference with imaging quality, while maintaining stable and continuous infusion throughout procedures.

Multi-Channel Infusion Flexibility

The HP-80 supports up to 4 infusion or syringe pumps simultaneously, allowing clinicians to tailor therapy to patient needs.

Compatible pump models include:

• HP-30 PRO Syringe Pump
• HP TCI PRO Syringe Pump
• HP-30 Neo Syringe Pump
• HP-60 PRO Infusion Pump

This modular approach provides complete flexibility across sedation, anaesthesia, and critical care applications.

Key Features

MRI-safe workstation design with magnetic shielding

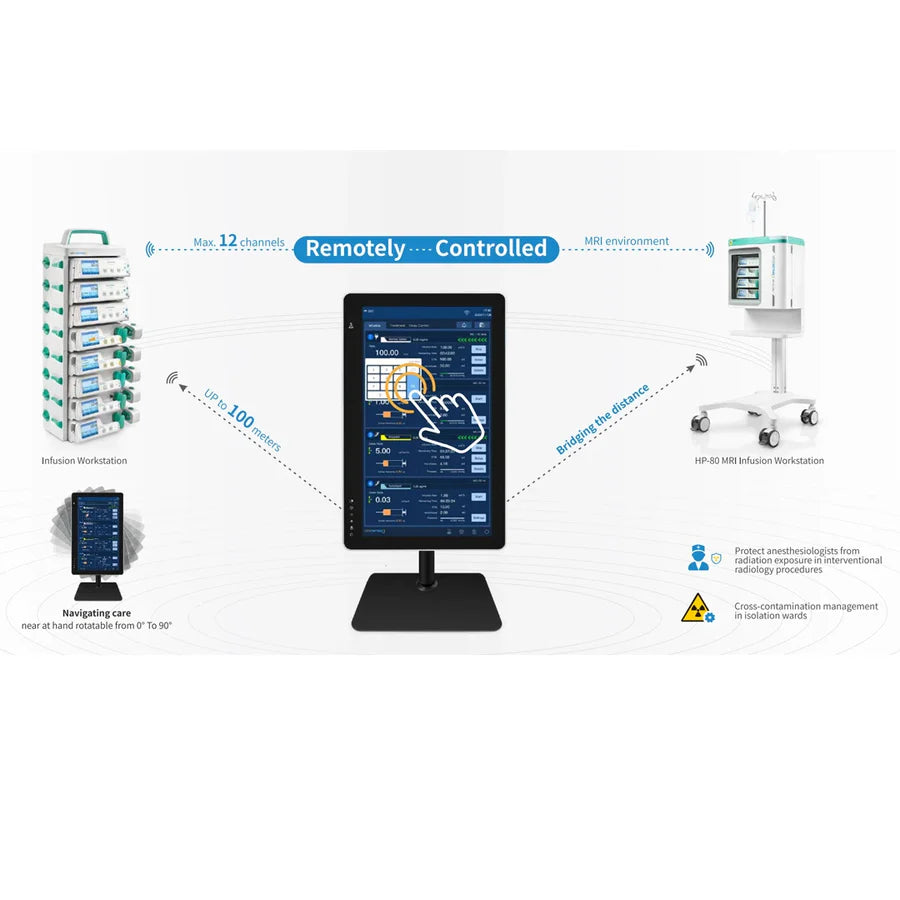

Remote operation capability (operate outside MRI room)
Multi-channel configuration (up to 4 pumps)
High-precision, uninterrupted drug delivery
Parallel patient preparation to improve workflow efficiency
Integrated alarm system for safety monitoring
Magnetic flux density monitoring with real-time alerts
Tube management system to prevent line obstruction
Robust enclosure to prevent MRI artefacts

Designed for Clinical Efficiency

The HP-80 is not just about safety — it’s about workflow optimisation.

• Allows preparation of patients while MRI is in use
• Reduces delays in imaging and treatment
• Improves utilisation of MRI suites
• Enables continuous care during transport into MRI

This translates to better patient outcomes and higher operational efficiency for healthcare facilities.

Specifications

Dimensions: 499 (L) × 290 (W) × 674 (H) mm
Weight: Approx. 21.9 kg

Infusion Channels: Up to 4 pumps
MRI Compatibility: 1.5T and 3.0T systems
Magnetic Field Tolerance: Up to 20mT

Ingress Protection: IP33
Power Supply: AC 100–240V, 50/60Hz
Input Power: 200VA

Ideal Applications

MRI procedures requiring continuous infusion
MRI-guided surgery and interventions
Sedation and anaesthesia delivery
Critical care and emergency imaging
Hospital radiology and surgical departments

Why Choose the HP-80 MRI Workstation?

When operating in MRI environments, there is no margin for error.

The MedCaptain HP-80 delivers:

• Safe operation in high magnetic fields
• Precision infusion across multiple therapies
• Reduced workflow delays
• Reliable, uninterrupted patient care

This is a specialist solution for high-level medical environments, built to meet the demands of modern MRI-based treatment.
