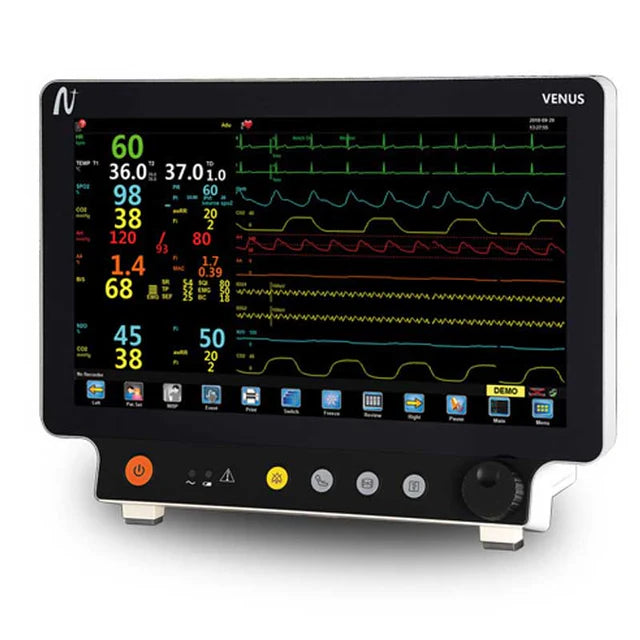

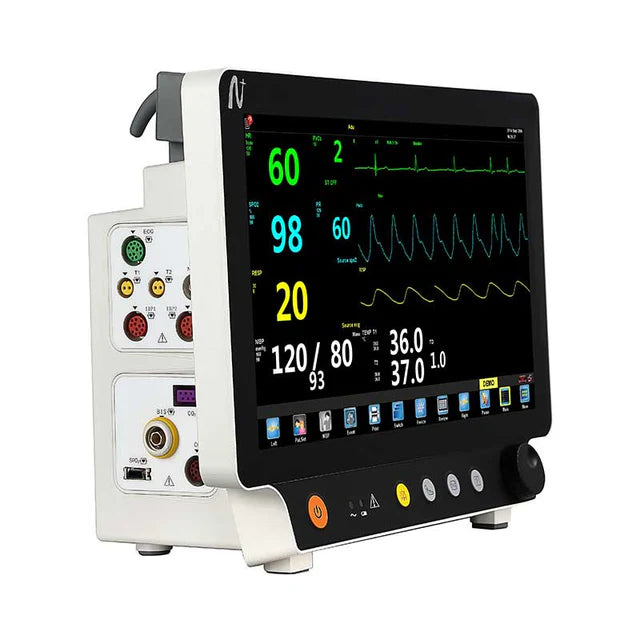

The Northern Venus Operating Patient Monitor is a premier patient monitoring system designed to support the dynamic requirements of operating rooms. Featuring a large 15.6” colour TFT LCD touchscreen, it provides exceptional clarity and ease of use for monitoring adult, paediatric, and neonatal patients. Its flexibility in parameter configuration allows it to be seamlessly integrated into various clinical environments, making it an indispensable tool for surgical teams.

Key Features:

•  Broad Patient Compatibility: Designed for adult, paediatric, and neonatal monitoring, offering versatility in patient care.

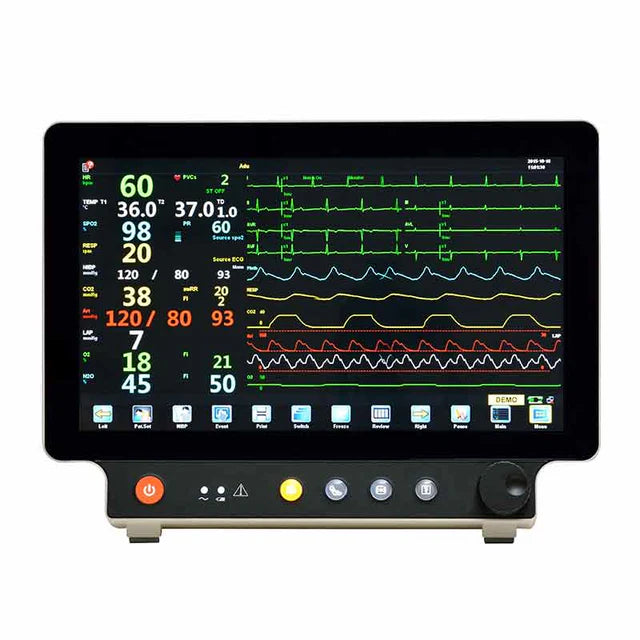

•  Enhanced Visual Display: A 15.6” colour TFT LCD touchscreen offers superior visibility and easy navigation through patient data.

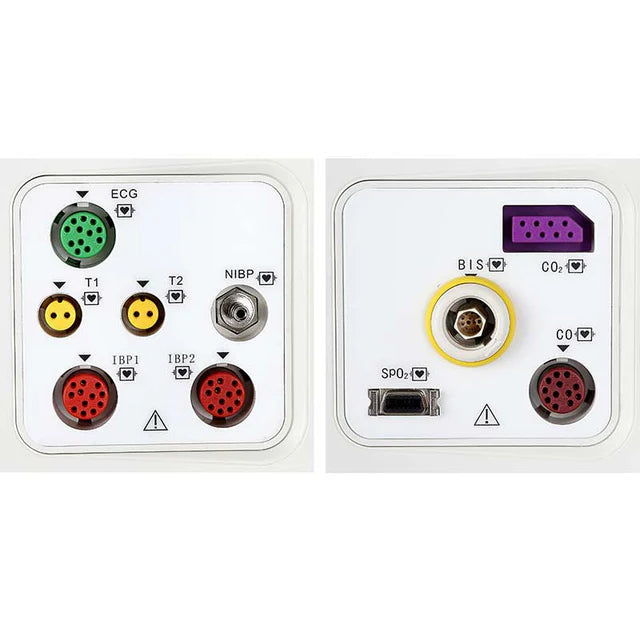

•  Comprehensive Monitoring Suite: Standard configuration includes 3 Lead ECG, HR, RESP, NIBP, SpO2, 2 Temp, and PR, equipped with pacemaker detection and ST & Arrhythmia analysis.
•  Advanced Visualisation Options: Supports up to 10 waveform displays with multiple screen options for in-depth monitoring.

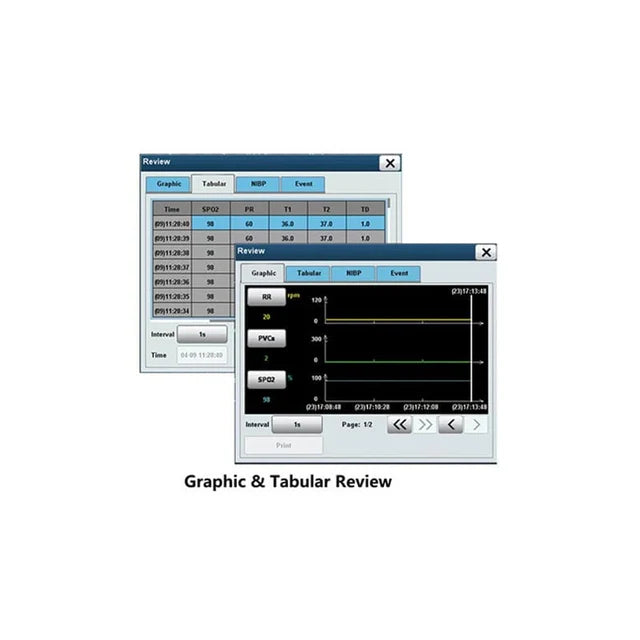

•  Extended Review Capabilities: Features 8 hours of holographic waveform and 168 hours of graphical & tabular trend review with adjustable settings.
•  Reliable Operation: Comes with a rechargeable high-capacity Li-ion battery for uninterrupted monitoring.

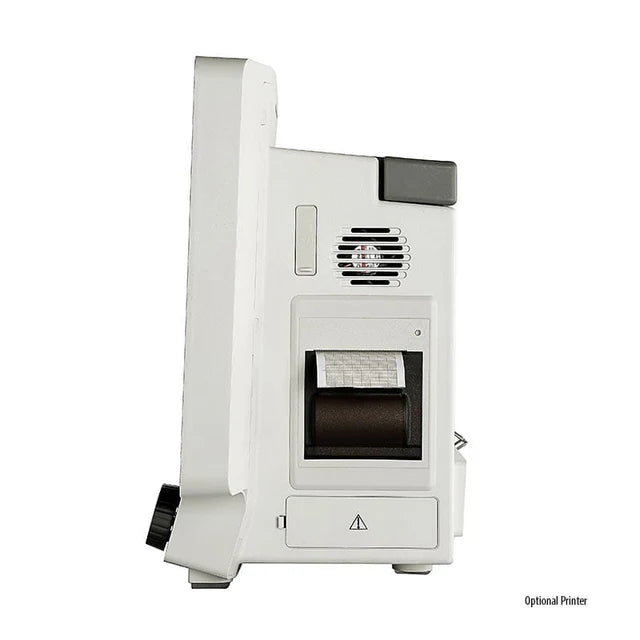

•  Expandable Functionality: Offers optional upgrades like thermal printer, trolley, wall mount, and advanced monitoring options for comprehensive patient assessment.
•  Seamless Connectivity: Includes options for WiFi, 3G/4G wireless connections, and central monitoring system integration.

Physical Specifications

Display
15.6" TFT Touch screen
Resolution: 1366 x 768
Number of traces: 10, up to 12 ECG waveforms
Dimension: 398×302×183mm(WxH×D)
Weight: < 7 kg under standard configuration

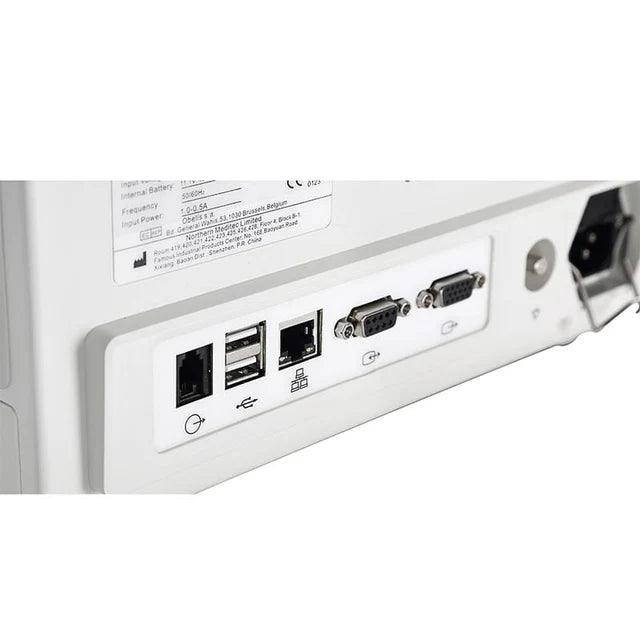

LAN: 1 standard RJ45 port
WLAN:IEEE 802.11b/g/n
USB: 2 USB connectors
HDMI: 1 HDMI monitor connnector
Output:1 connector for Nurse call,Defib Sync Analog Output

ECG
Lead type :3-lead,5-lead,12-lead(optional)
ECG waveform:2 channels,7 channels, 12 channels
Display sensitivity(wave gain):
1.25mm/mV(×0.125), 2.5mm/mV (×0.25), 5mm/mV (×0.5),
10mm/mV(×1.0), 20mm/mV (×2.0), 40mm/mV (×4.0),
Auto
Wave sweep speed:
3.125mm/s, 6.25mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s

Bandwidth
Diagnostic mode: 0.05Hz~150Hz
Monitor mode: 0.5Hz~40Hz
Surgery mode: 0.5Hz~25Hz
Strong filter mode: 5Hz~25Hz

CMRR>100dB
Notch: 50/60Hz notch filter can be set to on or off
Differential input impedance>5MΩ
Electrode polarization voltage range: ±400mV
HR range: 15 - 350 bpm
Baseline recovery time <3s after defibrillation (in monitor
and surgery mode)
Calibration signal:1mV (peak - peak), accuracy ±3%

RESP
Measurement method : Thoracic electrical bioimpedance
Measuring lead: Lead I, II
Wave gain: x0.25, x0.5, x1, x2
Respiratory impedance range: 0.5-50
Respiration range: 0 - 150bpm
Baseline impedance: 500-40000
Gain: 10 grades
Scan speed: 3.125mm/s, 6.25mm/s, 12.5 mm/s, 25mm/s

TEMP
Accuracy:±0.1C or ±0.2°F (without probe)
Measurement range: 5~50C (41~122°F)
Channel: Two channels
Resolution: 0.1C

SpO2
Measurement range : 0-100%
Parameter monitoring: Perfusion Index(PI), Pleth Variability Index(PVI)

Resolution: 1%
Accuracy: ±2% or ±2bpm
Refreshing Rate: 1s
Pleth wave speed: 3.125mm/s, 6.25mm/s, 12.5 mm/s, 25mm/s

Masimo SET SpO2 (Optional)
Measurement range : 0-100%
Resolution: 1%
Accuracy: ±2% (70-100%, Adult/Pediatric,non-motion,
low perfusion); ±3% (70-100%, Neonate, non-motion); ±3% (70-100%, motion); 0-69%,unspecified
Refreshing Rate: 1s

Pulse Rate
Range: 30~300 bpm
Resolution: 1bpm
Accuracy: ±2bpm (non-motion)
±5bpm (motion)
Refreshing rate: 1s

NIBP
Measurement method: Automatic oscillometric method
Operating mode: Manual, automatic, continuous
Measurement unit: mmHg/kPa selectable
Typical measurement time: 20~40s
Measurement type: Systolic, Diastolic, Mean
Measurement range: (mmHg)
Range of Systolic pressure: Adult 40-280, Pediatric 40-200, Neonatal 40-135
Range of Diastolic pressure: Adult 10-210, Pediatric 10-150, Neonatal 10-95
Range of Mean pressure: Adult 20-230, Pediatric 20-165, Neonatal 20-105

Measurement accuracy
Maximum average error: ±5mmHg
Maximum standard deviation: 8mmHg
Resolution: 1mmHg
Interval:1,2,3,4,5,10,15,30,60,90,120,180,240,480minutes
Overpressure protection: Software and hardware, double safety protection
Cuff pressure range: 0-300mmHg
