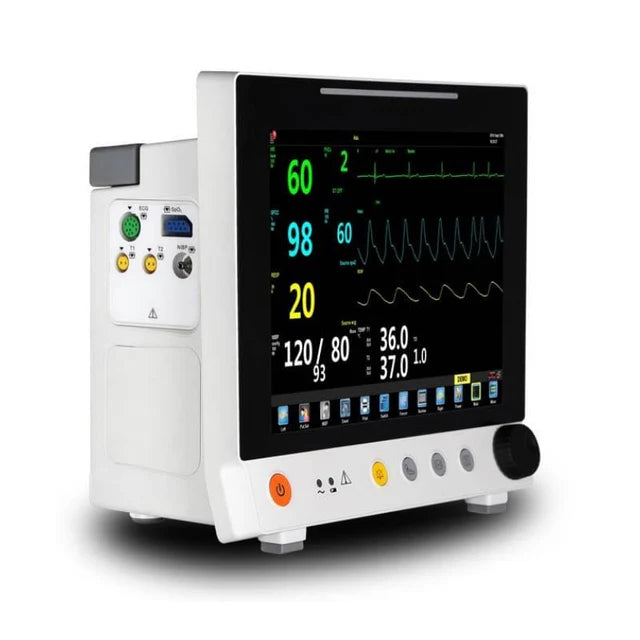

Introducing the Northern Virgo Anaesthesia Patient Monitor, a highly versatile and reliable monitoring solution designed for use in anaesthesia applications across adult, paediatric, and neonatal patients. Featuring a clear 12.1” colour TFT LCD screen, this monitor provides comprehensive monitoring capabilities in a compact and user-friendly package. It is engineered to adapt to various clinical settings, offering a flexible parameters configuration that ensures critical patient data is always at your fingertips.

Key Features:

•  Versatile Patient Compatibility: Suitable for monitoring a broad range of patients, from adults to neonates, ensuring flexibility across clinical scenarios.

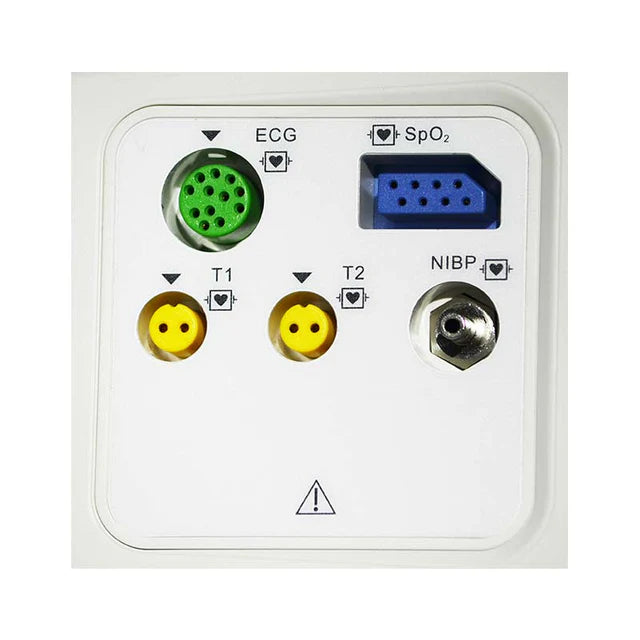

•  Comprehensive Monitoring Suite: Includes standard configurations like 3 Lead ECG, HR, RESP, NIBP, SpO2, 2 Temp, and PR, providing a thorough overview of patient vitals.

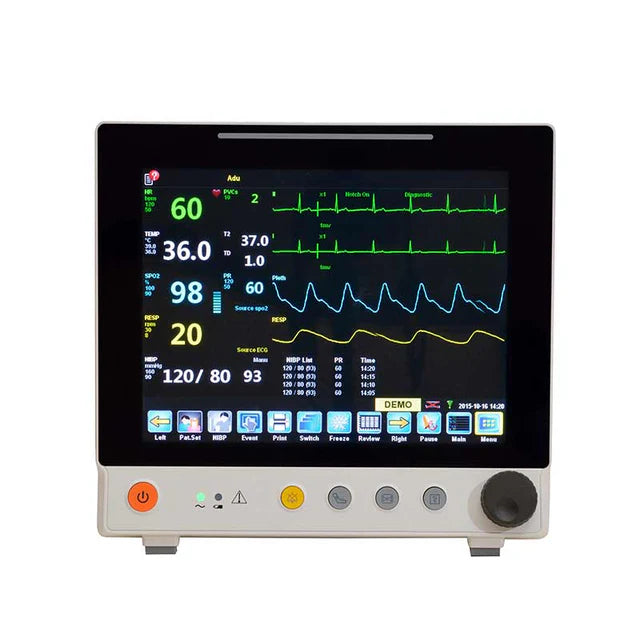

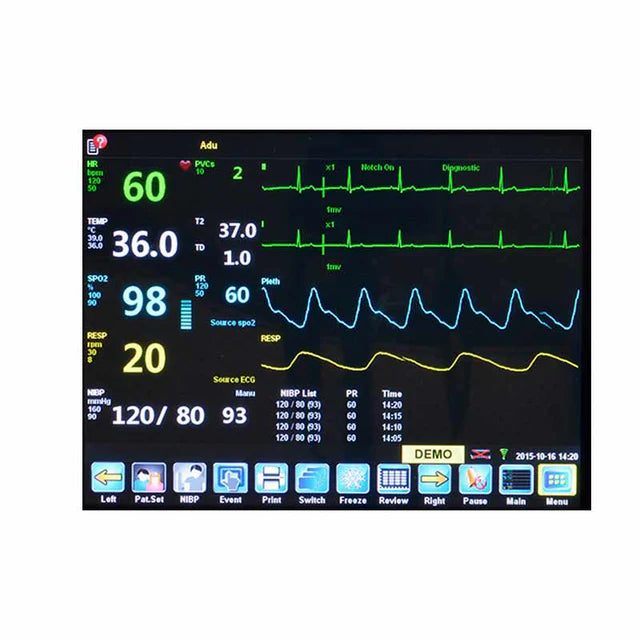

•  Enhanced Data Visibility: Features a big font mode and a 12.1” colour TFT LCD screen for easy reading of vital signs.
•  Detailed Data Review: Offers 8 hours of holographic waveform and 120 hours of graphical & tabular trend review with adjustable settings for comprehensive monitoring.
•  Reliable Alert System: Equipped with an accurate alarming system to ensure timely notifications of patient status changes.
•  Sustained Performance: Powered by a rechargeable high-capacity Li-ion battery for extended use.

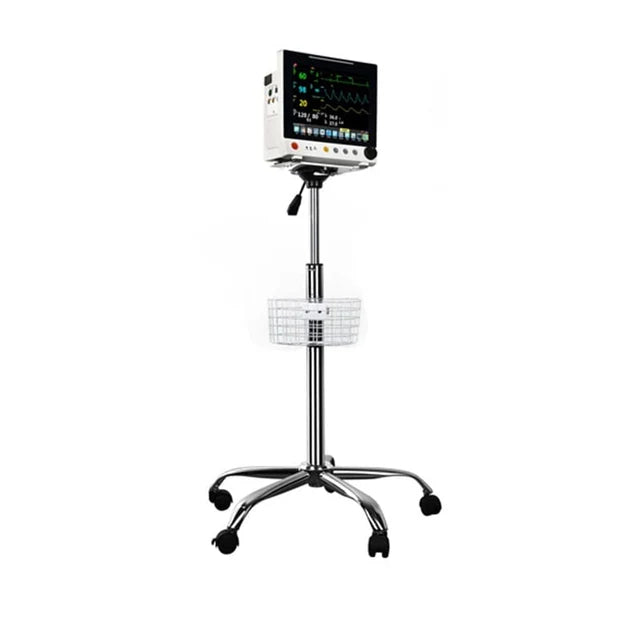

•  Expandable Functionality: Optional enhancements include a thermal printer and trolley for improved mobility and convenience.

Physical Specifications

Display
12.1" TFT LCD screen
Resolution: 800 x 600 (1024 x 768 optional)
Number of traces: 8, up to 12 ECG waveforms
Dimension: 310x292x174mm(WxHxD)
Weight: < 4 kg under standard configuration

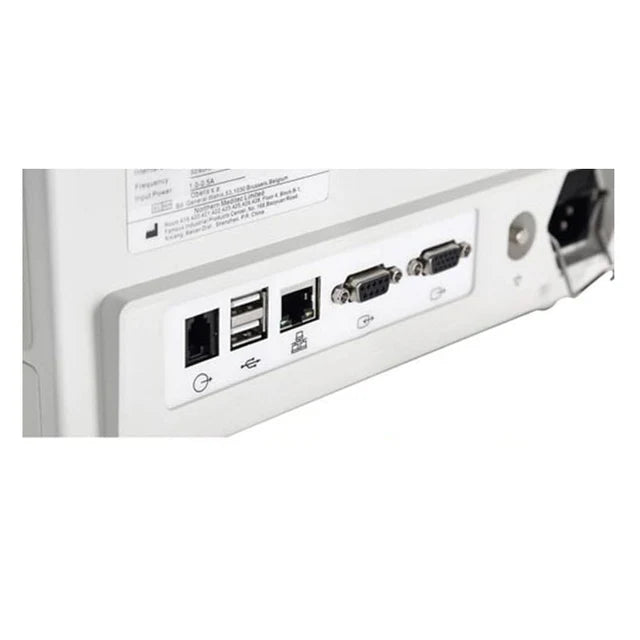

LAN: 1 standard RJ45 port
WLAN: IEEE 802.11b/g/n
USB: 2 USB connectors

ECG
Lead type: 3-lead, 5-lead, 12-lead (optional)
ECG waveform: 2 channels, 7 channels, 12 channels
Display sensitivity (wave gain): 1.25mm/mV (x0.125), 2.5mm/mV (×0.25), 5mm/mV
(x0.5), 10mm/mV (x1.0), 20mm/mV (x2.0), 40mm/mV
(x4.0), Auto
Wave sweep speed:
3.125mm/s, 6.25mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s

Bandwidth
Diagnostic mode: 0.05Hz~100Hz
Monitor mode: 0.5Hz~40Hz
Surgery mode: 1Hz~20Hz
Strong filter mode: 5Hz~20Hz

CMRR>100dB
Notch: 50/60Hz notch filter can be set to on or off
Differential input impedance>5MΩ
Electrode polarization voltage range: ±400mV
HR range: 15 - 350 bpm
ST Measurement Range: -1.0 - +10 mv
Baseline recovery time <3s after defibrillation (in monitor and surgery mode)
Calibration signal: 1mV (peak - peak), accuracy ±3%

RESP
Measurement method : Thoracic electrical bioimpedance
Operation modes: Auto/Manual
Measuring lead: Lead I, II
Measurement range: Adult: 0~120 bmp; Neonate/Pediatric:0~150bpm
Resolution: 1bpm
Apnea alarm delay: 10s, 15s, 20s, 25s, 30s, 35s, 40s
Apnea alarm: Selectable
Wave gain: x0.25, x0.5, x1, x2
Respiratory impedance range: 0.5-5Ω
Baseline impedance: 500-4000Ω
Gain: 10 grades
Scan speed: 3.125mm/s, 6.25mm/s, 12.5 mm/s, 25mm/s

TEMP
Accuracy: ±0.1°C or ±0.2°F
Measurement range: 0~50°C (41~122°F)
Channel: Two channels
Resolution: 0.1°C
Parameters: T1, T2 and TD

SpO2
Measurement range: 0-100%
Resolution: 1%
Perfusion index display
Accuracy: ±2% (70-100%, Adult/Pediatric); ±3% (70-100%, Neonate); 0-69%,unspecified
Refreshing Rate: 1s

Masimo SET SpO2 (Optional)
Measurement range : 0-100%
Resolution: 1%
Accuracy: ±2% (70-100%, Adult/Pediatric, non-motion, low perfusion); ±3% (70-100%, Neonate, non-motion); ±3% (70-100%, motion); 0-69%, unspecified
Refreshing Rate: 1s

Pulse Rate
Range: 30~300 bpm
Resolution: 1bpm
Accuracy: ±2bpm (non-motion) ±5bpm (motion)
Refreshing rate: 1s

NIBP
Measurement method: Automatic oscillometric method
Operating mode: Manual, automatic, continuous
Measurement unit: mmHg/kPa selectable
Typical measurement time: 20~40s
Measurement type: Systolic, Diastolic, Mean
Measurement range: (mmHg)
Range of Systolic pressure: Adult 40-280, Pediatric 40-200, Neonatal 40-135
Range of Diastolic pressure: Adult 10-210, Pediatric 10-150, Neonatal 10-95
Range of Mean pressure: Adult 20-230, Pediatric 20-165, Neonatal 20-105

Measurement accuracy
Maximum average error: ±5mmHg
Maximum standard deviation: 8mmHg
Resolution: 1mmHg
Interval:1,2,3,4,5,10,15,30,60,90,120,180,240,480minutes
Overpressure protection: Software and hardware, double safety protection
Cuff pressure range: 0-300mmHg
