Advanced Precision Infusion with Smart Safety Features

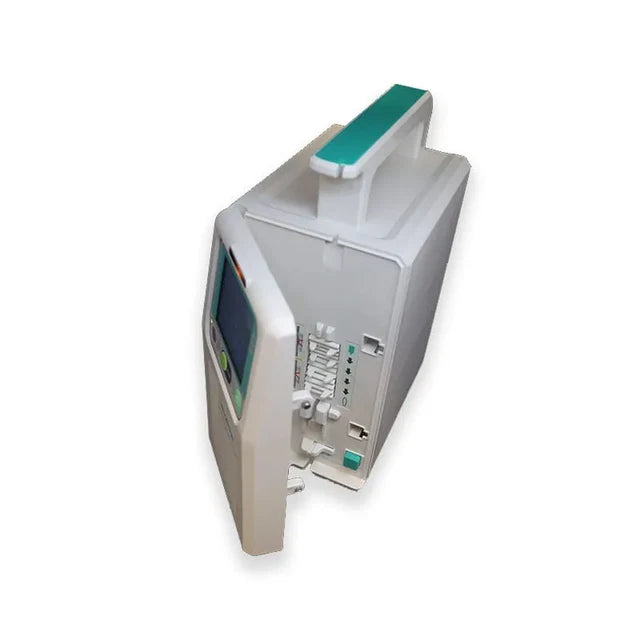

The MedCaptain SYS-6010 Infusion Pump is a modern, high-precision device designed to deliver accurate and reliable infusion therapy across a wide range of clinical environments.

Built with safety, efficiency, and ease of use in mind, it combines intuitive touchscreen control, advanced infusion modes, and intelligent safety systems to support consistent and controlled drug delivery.

Suitable for hospitals, clinics, and healthcare facilities, the SYS-6010 enhances workflow while maintaining a high standard of patient care.

Key Features

Multiple infusion modes (rate, time, weight, sequence, drip)
Accurate delivery with ≤ ±5% infusion precision

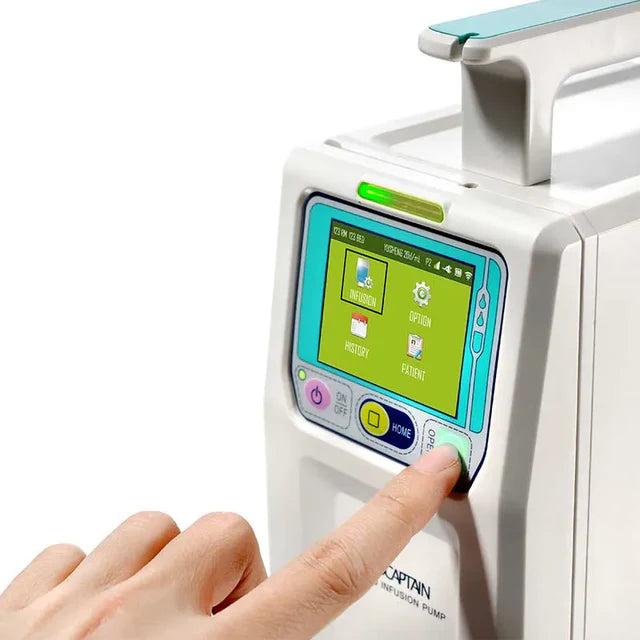

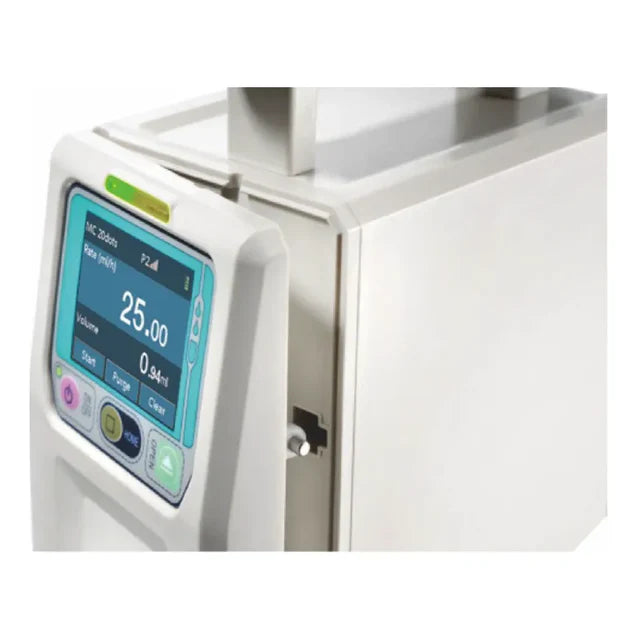

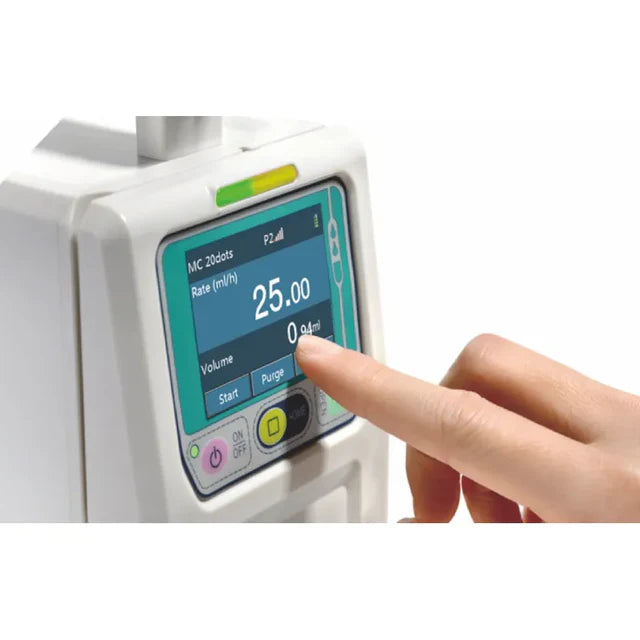

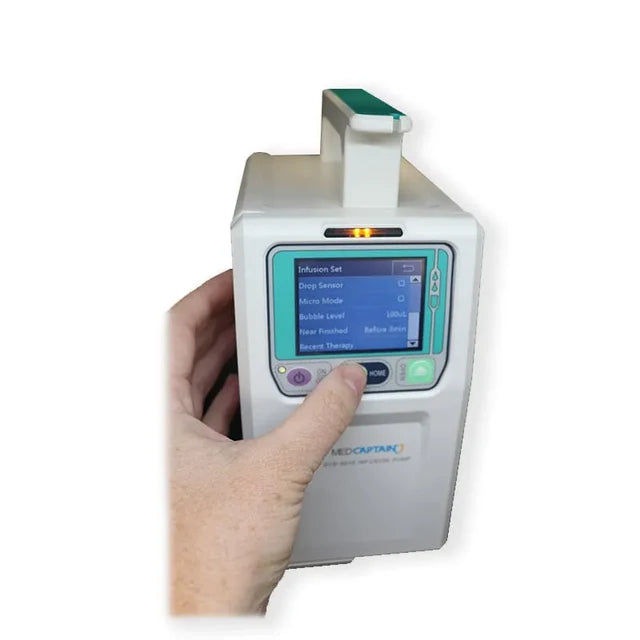

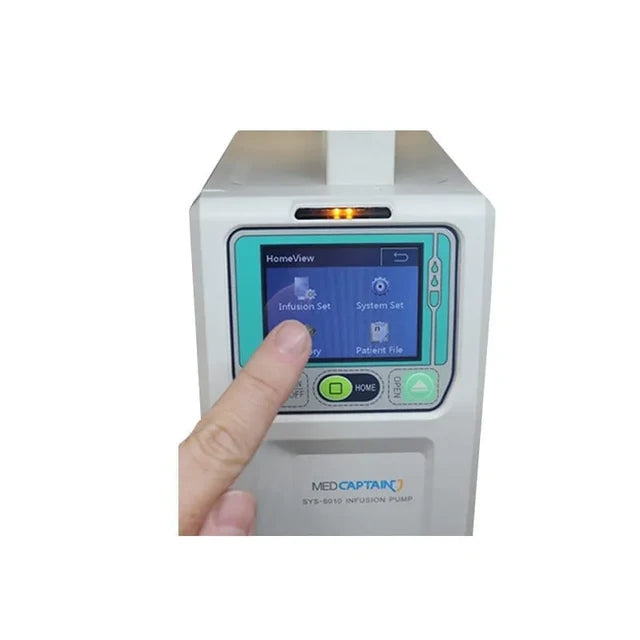

Touchscreen display for simple operation

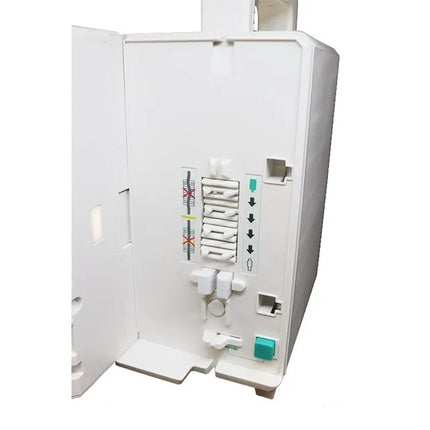

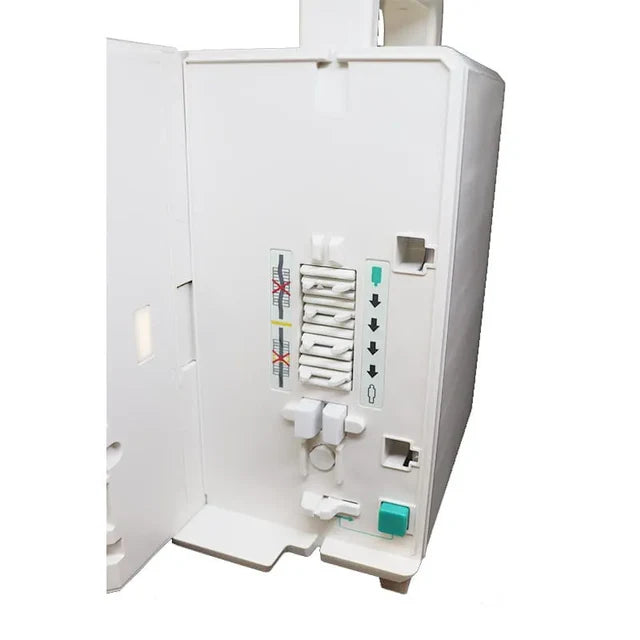

Motorised door for quick and safe setup
Anti-free flow and anti-bolus protection
Continuous titration during infusion
Optional Wi-Fi connectivity for central monitoring
Barcode scanning for patient and medication verification
Night mode for low-light environments
Automatic maintenance reminders
Built-in voice alerts for enhanced safety

Designed for Clinical Efficiency

The SYS-6010 is engineered to improve workflow and reduce manual errors. Its intelligent system allows clinicians to adjust infusion rates in real time without interrupting therapy, while built-in alarms and safety mechanisms help minimise risk.

Package Contents

1 × MedCaptain SYS-6010 Infusion Pump
1 × Pole Clamp
1 × AC Power Cord
1 × User Manual
1 × Quick Guide

Specifications

Model: SYS-6010
Infusion System: Peristaltic
Display: 2.4” TFT Touch Screen (320 × 240)

Dimensions: 100 × 230 × 190 mm
Weight: 1.4 kg (including battery)

Power Supply: AC 100–240V, 50/60Hz
External DC Input: 12V 1A

Battery: 7.2V 2600mAh lithium
Battery Life: ≥ 5 hours

Infusion Modes: Rate, Time, Weight, Sequence (5 groups), Drip Mode

Flow Rate Range: 0.10 – 1200 mL/h
VTBI Range: 0.10 – 9999 mL
Infusion Accuracy: ≤ ±5%

Bolus Range: 0.10 – 1200 mL/h
KVO Rate: 0.10 – 5.00 mL/h

Alarm Volume: 45 – 85 dB
Event Log: 2000 records

Operating Conditions:
Temperature: 5°C – 40°C
Humidity: 15% – 95% RH

Protection Rating: IPX2
Service Life: Up to 10 years

Safety & Monitoring

The SYS-6010 includes a comprehensive range of alarms and monitoring features, including:

Occlusion detection
Air-in-line detection
Low battery and power alerts
Door open detection
Flow irregularities and system reminders

These systems ensure safe and uninterrupted infusion therapy in demanding clinical environments.

Reliable, Accurate & Easy to Use

The MedCaptain SYS-6010 is a dependable infusion pump that balances precision, safety, and usability — making it a strong choice for healthcare providers seeking a modern infusion solution.
