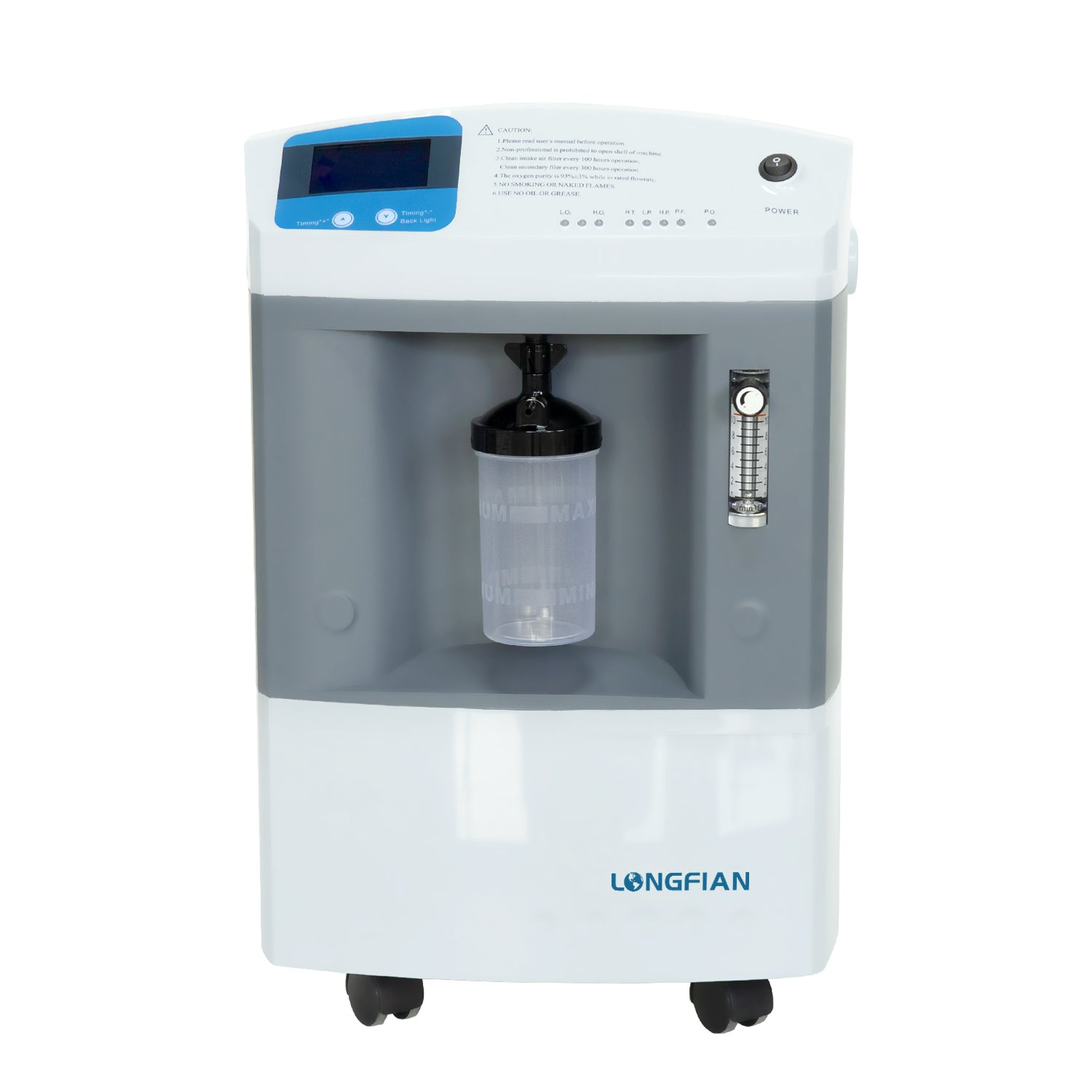

Longfian Jay10 – 10L Medical Oxygen Concentrator (Single Flow)

High-Capacity. Continuous Flow. Built for Demanding Environments.

The Longfian Jay10 is a high-performance, 10-litre medical oxygen concentrator engineered for continuous, reliable operation in both clinical and home settings. Whether used in respiratory care, veterinary environments, or industrial applications, the Jay10 delivers consistent oxygen purity with intelligent safety features and enhanced cooling efficiency.

Key Features

• High Flow Capacity – Adjustable flow range from 0.5 to 10 litres per minute, making it suitable for a wide range of users and applications.

• Consistent Oxygen Purity – Delivers up to 90–96% oxygen purity across all flow rates for dependable performance.

• 24/7 Continuous Operation – Designed for round-the-clock use with advanced cooling systems to prevent overheating.

• Advanced Cooling Technology – Built with copper tubing and aluminium fin heat exchangers for superior heat dissipation and extended machine life.

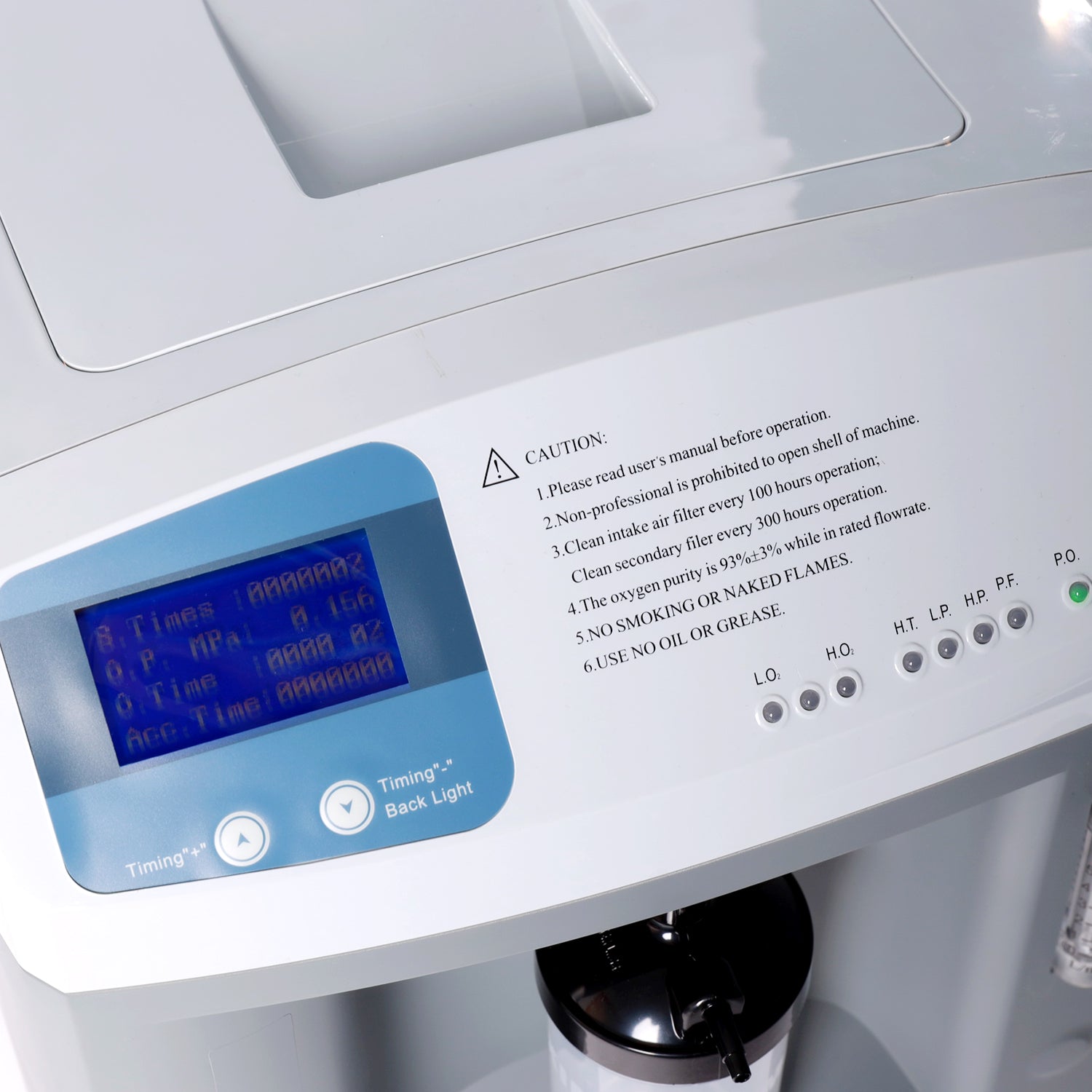

• Oversized LCD Display – Clear, easy-to-read interface showing real-time operating data and system status.

• Multi-Level Alarms – Includes high/low pressure, high temperature, oxygen purity, maintenance, and power failure alerts for maximum safety.

• Low Noise & Compact Design – Operates quietly and smoothly; lightweight at only 27 kg with castors and two brakes for easy transport.

• HFNC Compatible – Can be connected to High Flow Nasal Cannula (HFNC) systems when needed.

• Built-in Timer & Mute Function – Set operational durations and reduce audio notifications when required.

What Makes the Jay10 Different?

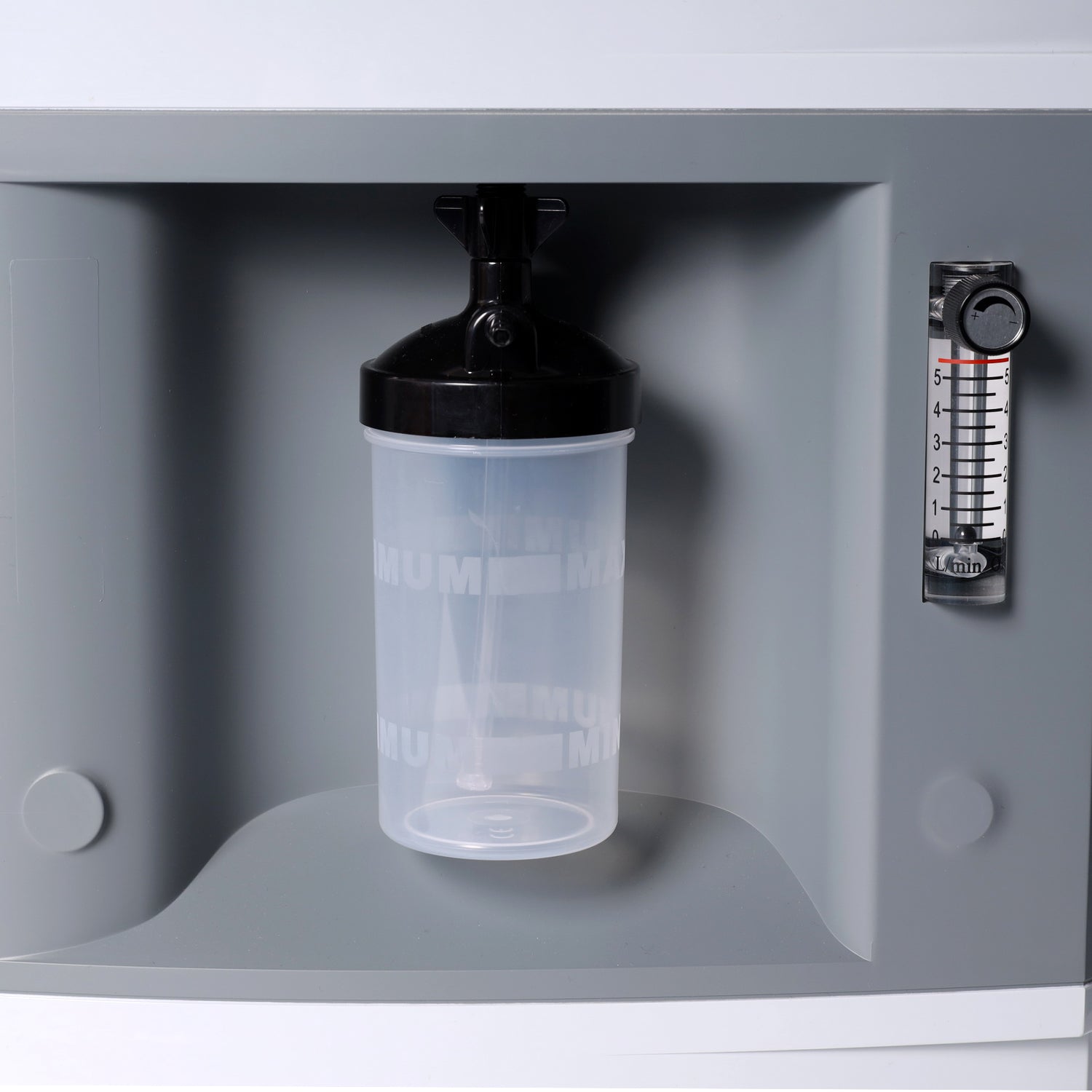

• SALTER LABS Humidifier Bottle – American-made humidifier with 6 PSI pressure release for improved user comfort.

• Medical-Grade Tubing – Internal piping uses silicone and nylon tubing (not industrial plastic) for safe, clean oxygen delivery.

• Ceramic Inner Case – Durable and heat-resistant design ensures longer life span and safe operation under prolonged use.

• Altitude-Ready – Integrated pressure sensor adjusts to high-altitude environments, maintaining oxygen output quality.

• Multi-Use Ready – Connect a 5-way splitter to support up to 5 users simultaneously.

Applications & Use Cases

• Home oxygen support for users under professional supervision

• Clinics, hospitals, aged care and post-operative recovery rooms

• Veterinary clinics and animal care centres (pet oxygen cages, ventilators, anesthesia machines)

• Industrial use: ozone production, welding, and precision glass cutting

• Oxygen therapy support in high-stress professions or environments (e.g. healthcare professionals, students, shift workers)

Package Includes

• 1 x Longfian Jay10 10L Oxygen Concentrator

• 1 x Power Cable

• 2 x Filtering Cloths

• 2 x Air Filters

• 2 x Nasal Cannulas

• 1 x Humidifier Bottle

Specifications

• Flow Range: 0.5 – 10 L/min

• Oxygen Purity: 90% – 96%

• Output Pressure: 0.04 – 0.07 MPa

• Weight: 27 kg

• Dimensions: 365 × 375 × 600 mm

• Operating Time: Continuous use (24 hours/day)

• Power Supply: AC 230V ± 10%, 50Hz

• Noise Level: ≤ 60 dB

• LCD Display: Yes

• Alarm System: Yes – multiple safety alerts

• Castors: Yes – 4 wheels, 2 with locking brakes

Trusted, Reliable, and Built to Perform.

Choose the Longfian Jay10 for powerful, continuous oxygen delivery in any demanding environment—without compromise.

ARTG* registration number - 399673
