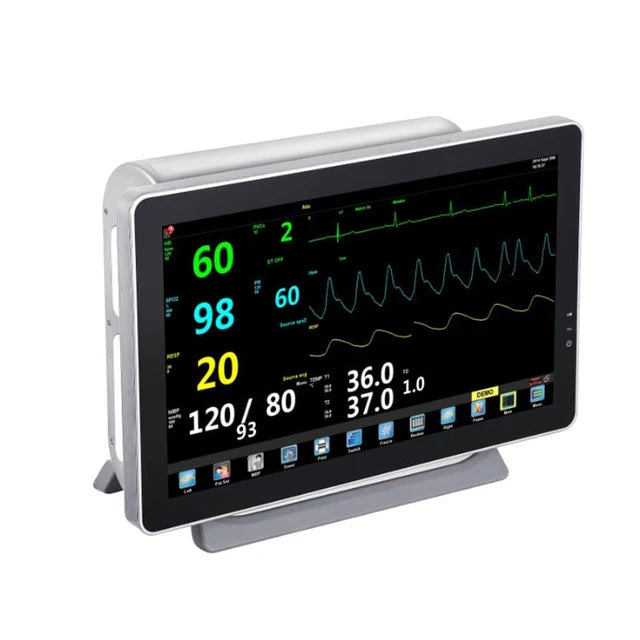

The Northern Gemini Anaesthesia Patient Monitor is a top-tier hospital patient monitoring solution, featuring a 15.6” colour TFT LCD touchscreen. Designed for versatility, it caters to adult, paediatric, and neonatal patients with ease. This monitor is customisable to fit a variety of clinical environments, offering an extensive range of vital sign monitoring and diagnostic tools. With the option to upgrade the screen size post-purchase and a suite of advanced features, the Gemini stands out as a comprehensive and adaptable choice for healthcare professionals.

Key Features:

•  Wide Patient Range: Suitable for adult, paediatric, and neonatal patients, offering broad clinical application.

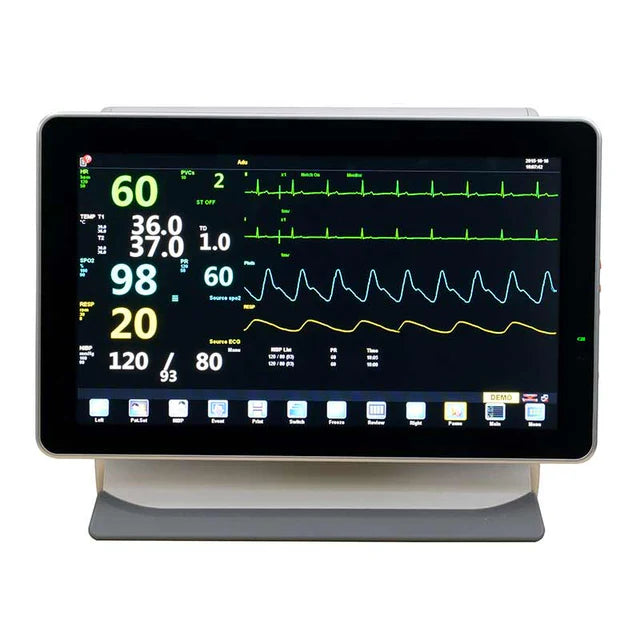

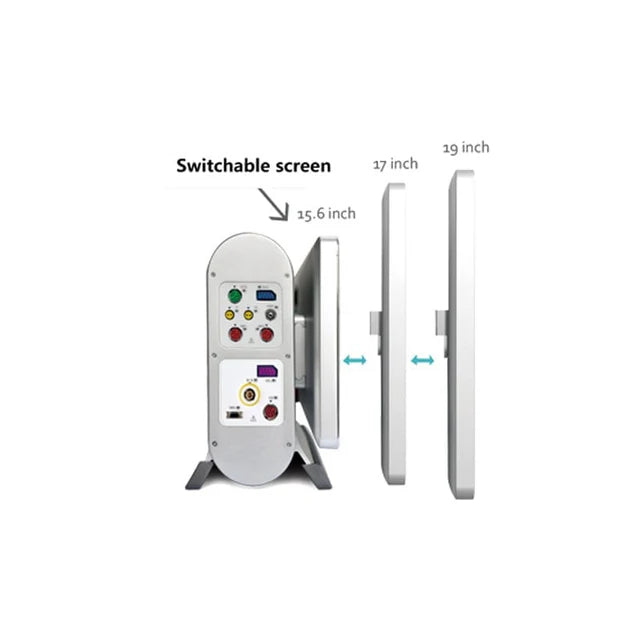

•  Large Touchscreen Display: Comes with a 15.6” colour TFT LCD touchscreen, upgradable to 17" & 19" for enhanced visibility.
•  Comprehensive Monitoring: Standard configuration includes 3 Lead ECG, HR, RESP, NIBP, SpO2, 2 Temp, and PR, along with pacemaker detection and ST & Arrhythmia analysis.

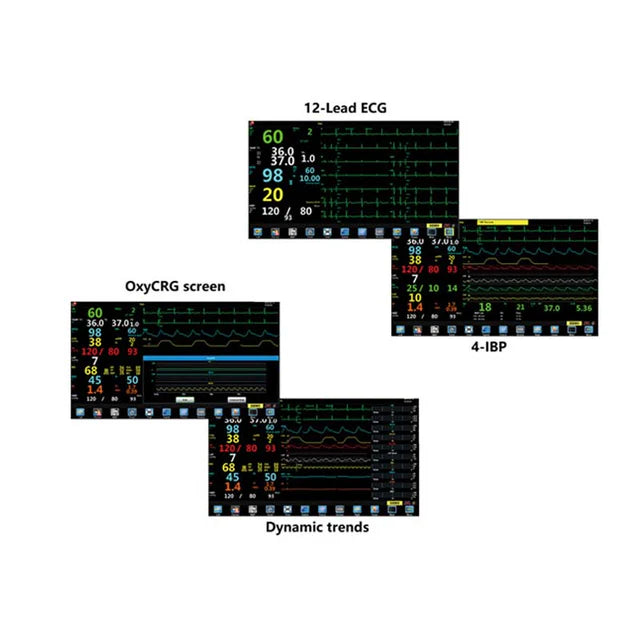

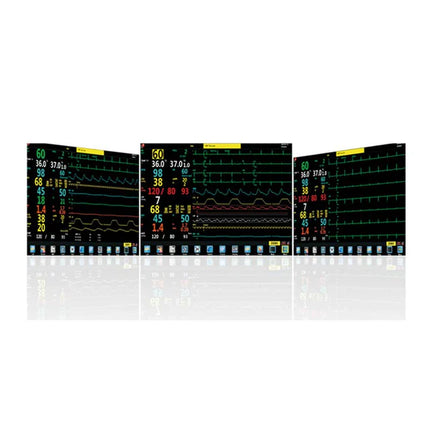

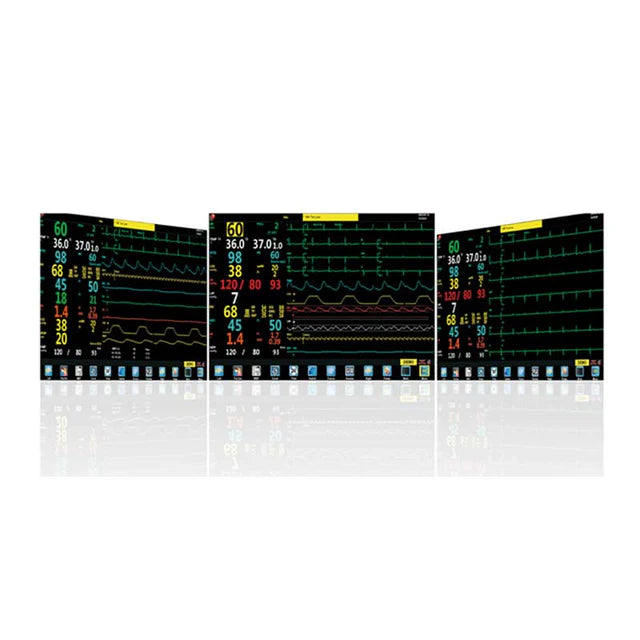

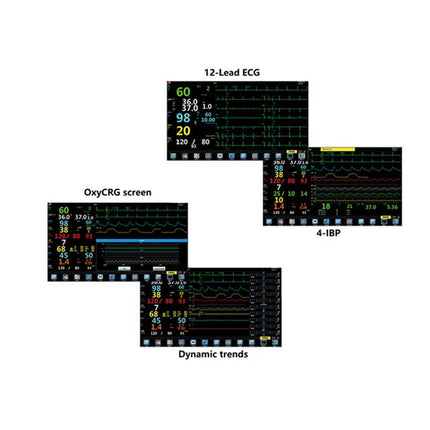

•  Advanced Display Options: Supports up to 10 waveform displays with multi selectable screen options for optimal data presentation.
•  Extended Data Review: Provides 8 hours of holographic waveform and 168 hours of graphical & tabular trend review with customisable settings.
•  Reliable Alert System: Features an accurate alarming system to ensure immediate attention to patient changes.
•  Optional Enhancements: Availability of thermal printer, trolley, wall mount, advanced SpO2 options, Dual IBP, EtCO2 monitoring, Multigas analysis, and more for comprehensive care.
•  Connectivity Options: Offers WiFi, 3G/4G wireless connection, and central monitoring system integration for streamlined operations.

Key Specifications

Display

* 15.6” or 18.5” TFT touchscreen options
* Resolution: 1366 × 768
* Displays up to 10 traces and up to 12 ECG waveforms

Dimensions

* 15.6”: 403 × 320 × 185mm
* 18.5”: 470 × 327 × 185mm
* Weight: Under 10kg in standard configuration

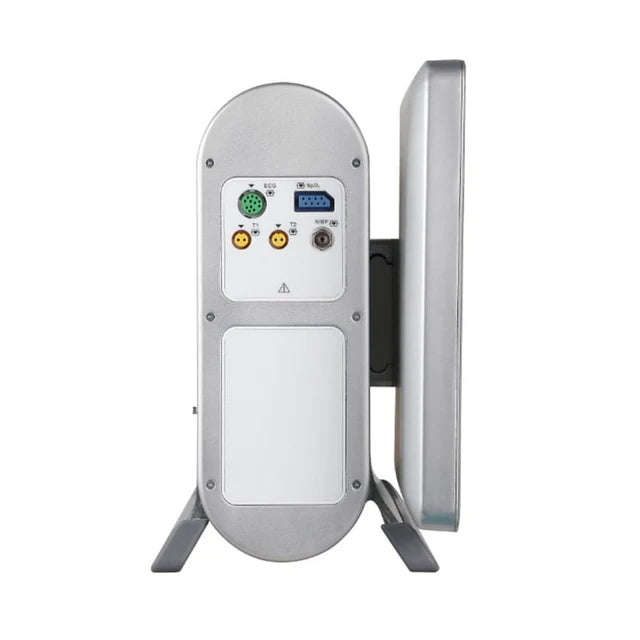

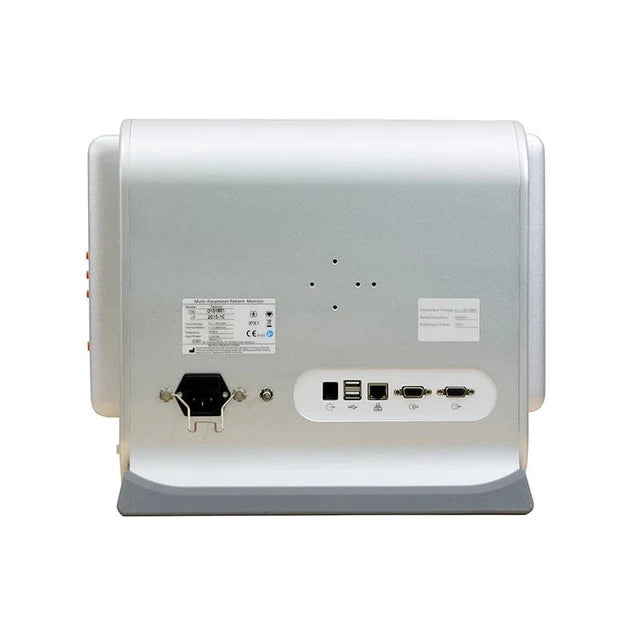

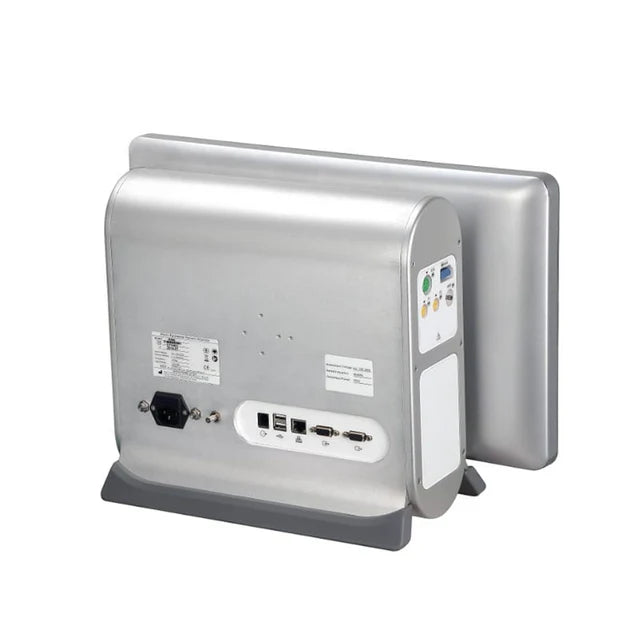

Connectivity

* LAN: 1 × RJ45 port
* WLAN: IEEE 802.11b/g/n
* USB: 2 × USB ports
* HDMI: 1 × HDMI monitor connector
* Output: Nurse call, defib sync and analogue output connector

ECG

* Lead type: 3-lead, 5-lead, 12-lead optional
* ECG waveform: 2, 7 or 12 channels
* Heart rate range: 15–350 bpm
* Sweep speed: 3.125, 6.25, 12.5, 25 or 50mm/s
* Bandwidth modes: Diagnostic, Monitor, Surgery and Strong Filter
* CMRR: >100dB
* Defibrillation recovery: <3 seconds

Respiration

* Method: Thoracic electrical bioimpedance
* Adult range: 0–120 bpm
* Neonatal/Pediatric range: 0–150 bpm
* Apnea alarm delay: 10–40 seconds selectable
* Wave gain: ×0.25, ×0.5, ×1, ×2

Temperature

* Two-channel temperature monitoring
* Range: 0–50°C
* Accuracy: ±0.1°C without probe
* Resolution: 0.1°C
* Parameters: T1, T2 and TD

SpO2

* Measurement range: 0–100%
* Monitors PI and PVI
* Resolution: 1%
* Accuracy: ±2%
* Refresh rate: 1 second
* Optional Masimo SET SpO2 available

Pulse Rate

* Range: 35–300 bpm
* Accuracy: ±2 bpm non-motion, ±5 bpm motion
* Refresh rate: 1 second

NIBP

* Automatic oscillometric measurement
* Modes: Manual, automatic and continuous
* Typical measurement time: 20–40 seconds
* Measures systolic, diastolic and mean pressure
* Adult systolic range: 40–270mmHg
* Pediatric systolic range: 40–200mmHg
* Neonatal systolic range: 40–135mmHg
* Accuracy: ±5mmHg average error
* Dual software and hardware overpressure protection
