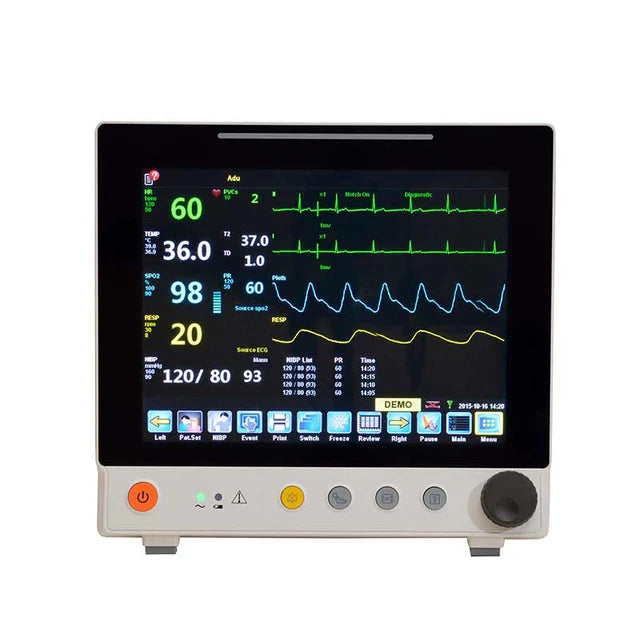

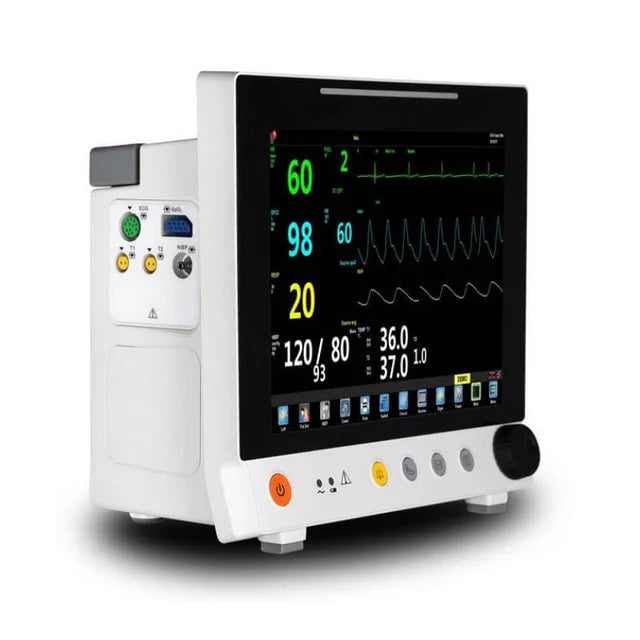

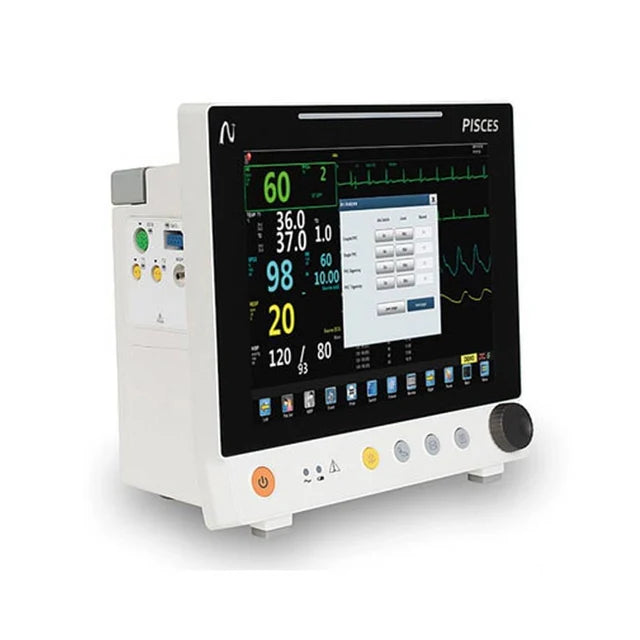

Introducing the Northern Pisces Multiparameter Patient Monitor, an advanced device tailored for comprehensive patient monitoring across adult, paediatric, and neonatal demographics. This monitor showcases a vibrant 12.1” colour TFT LCD screen, ensuring clarity and precision in patient data display. Designed with adaptability in mind, it supports custom parameter configurations to meet the diverse requirements of different clinical environments, solidifying its status as a versatile asset in healthcare settings.

Key Features:

•  Adaptable to Various Patients: Suitable for adult, paediatric, and neonatal patient monitoring with a broad array of vital signs.
•  Extensive Monitoring Capabilities: Includes essential parameters like 3 Lead ECG, HR, RESP, NIBP, SpO2, 2 Temp, and PR for comprehensive patient assessments.

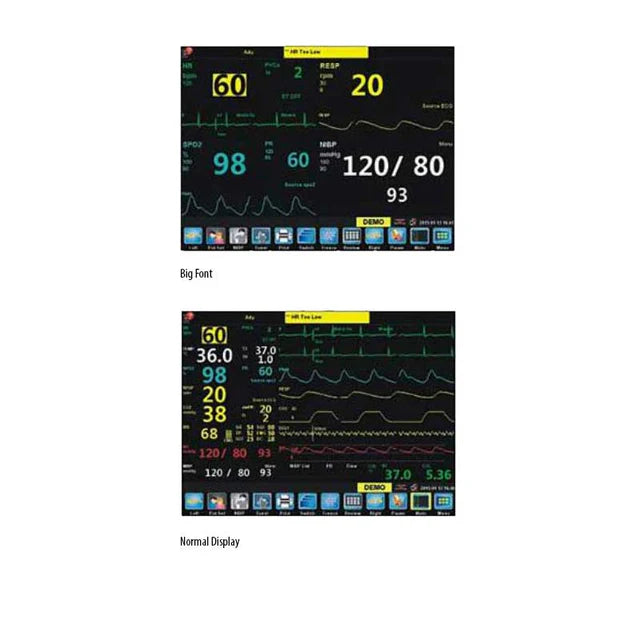

•  Clear Visual Display: Boasts a large 12.1” colour TFT LCD screen with a big font mode for enhanced readability.

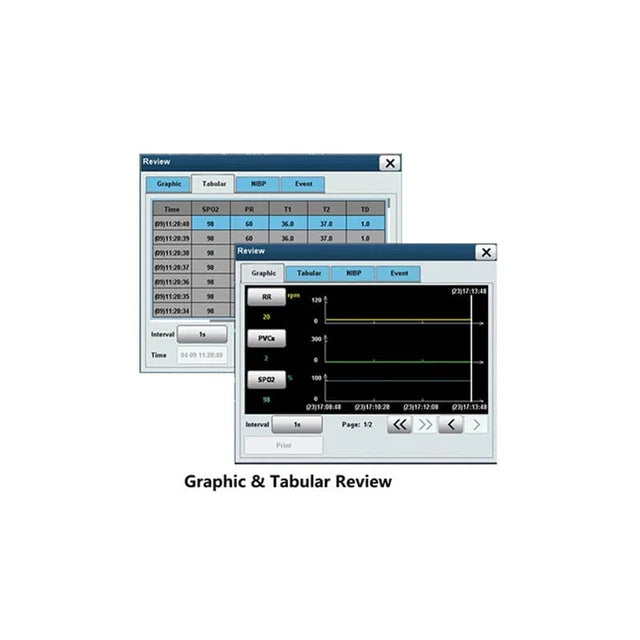

•  Sophisticated Data Analysis: Features 8 hours of holographic waveform and 120 hours of graphical & tabular trend review, with adjustable size and colour settings.
•  Dependable Alert System: Comes equipped with an accurate alarming system for immediate notification of patient condition changes.
•  Mobility and Endurance: Powered by a rechargeable high-capacity Li-ion battery for sustained, reliable monitoring.

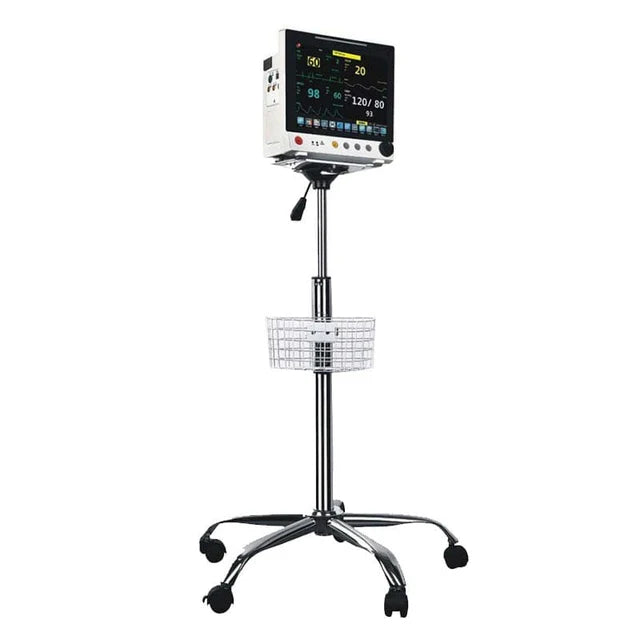

•  Customisation and Upgrades: Offers optional enhancements like a thermal printer, trolley, wall mount, and various advanced monitoring functions such as Skin Temp and EtCO2.

Physical Specifications

Display
12.1" TFT Touch screen
Resolution: 800 x 600 (1024 x 768 optional)
Number of traces: 8, up to 12 ECG waveforms
Dimension: 310x292x174mm (WxHxD)
Weight: <5 kg under standard configuration

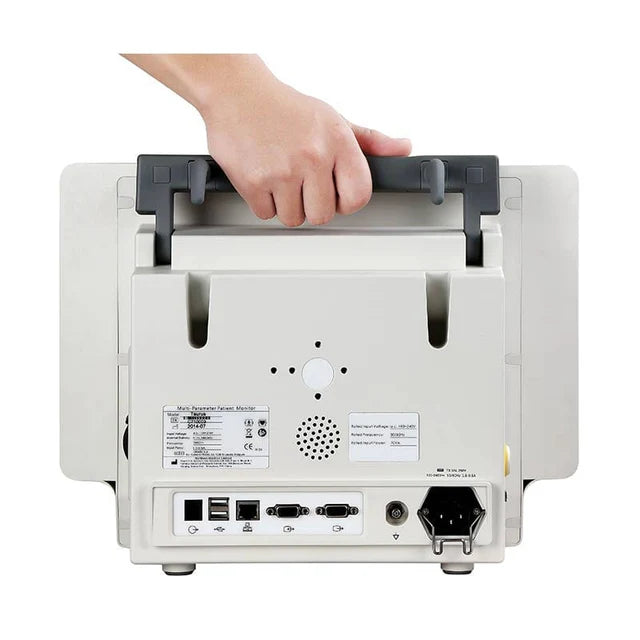

LAN: 1 standard RJ45 port
WLAN:IEEE 802.11b/g/n
USB: 2 USB connectors
Output: 1 connector for Nurse call, Defib Sync Analog Output

ECG
Lead type: 3-lead, 5-lead, 12-lead (optional)
ECG waveform: 2 channels, 7 channels, 12 channels
Display sensitivity: 2.5mm/mV (×0.25), 5mm/mV (×0.5), 10mm/mV (×1.0), 20mm/mV (x2.0)
Wave sweep speed:
3.125mm/s, 6.25mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s

Bandwidth
Diagnostic mode: 0.05Hz~100Hz
Monitor mode: 0.5Hz~40Hz
Surgery mode: 1Hz~20Hz
Strong filter mode: 5Hz~20Hz

CMRR>100dB
Notch: 50/60Hz notch filter can be set to on or off
Differential input impedance>5MΩ
Electrode polarization voltage range: ±400mV
HR range: 15 - 350 bpm
ST Measurement Range: -1.0 - +10 mv
Baseline recovery time<3s after defibrillation (in monitor and surgery mode)
Calibration signal: 1mV (peak - peak), accuracy ±3%

RESP
Measurement method : Thoracic electrical bioimpedance
Operation modes: Auto/Manual
Measuring lead: Lead I, II
Measurement range: Adult: 0~120 bmp; Neonate/Pediatric:0~150bpm
Resolution: 1bpm
Apnea alarm delay: 10s, 15s,20s,25s,30s,35s,40s
Apnea alarm: Selectable
Wave gain: x0.25, x0.5, x1, x2
Respiratory impedance range: 0.5-5Ω
Baseline impedance: 500-4000Ω
Gain: 10 grades
Scan speed: 3.125mm/s, 6.25mm/s, 12.5 mm/s, 25mm/s

TEMP
Accuracy: ±0.1°C or ±0.2°F (without probe)
Measurement range: 0~50℃
Channel: Two channels
Resolution: 0.1°C
Parameters: T1,T2 and TD

SpO2
Measurement range : 0-100%
Parameter monitoring: Perfusion Index(PI) :1-10, Pleth Variability Index(PVI)
Resolution: 1%
Accuracy: ±2% or ±2bpm
Refreshing Rate: 1s
Pleth wave speed: 3.125mm/s, 6.25mm/s, 12.5 mm/s, 25mm/s

Masimo SET SpO2 (Optional)
Measurement range : 0-100%
Resolution: 1%
Accuracy: ±2% (70-100%, Adult/Pediatric, non-motion, low perfusion); ±3% (70-100%, Neonate, non-motion); ±3% (70-100%, motion); 0-69%, unspecified
Refreshing Rate: 1s

Pulse Rate
Range: 30~300 bpm
Resolution: 1bpm
Accuracy: ±3bpm (non-motion) ±5bpm (motion)
Refreshing rate: 1s

NIBP
Measurement method: Automatic oscillometric method
Operating mode: Manual, automatic, continuous
Measurement unit: mmHg/kPa selectable
Typical measurement time: 20~40s
Measurement type: Systolic, Diastolic, Mean
Measurement range: (mmHg)
Range of Systolic pressure: Adult 40-280, Pediatric 40-200, Neonatal 40-135
Range of Diastolic pressure: Adult 10-210, Pediatric 10-150, Neonatal 10-95
Range of Mean pressure: Adult 20-230, Pediatric 20-165, Neonatal 20-105

Measurement accuracy
Maximum average error: ±5mmHg
Maximum standard deviation: 8mmHg
Resolution: 1mmHg
Interval:1,2,3,4,5,10,15,30,60,90,120,180,240,480minutes
Overpressure protection: Software and hardware, double safety protection
Cuff pressure range: 0-300mmHg
