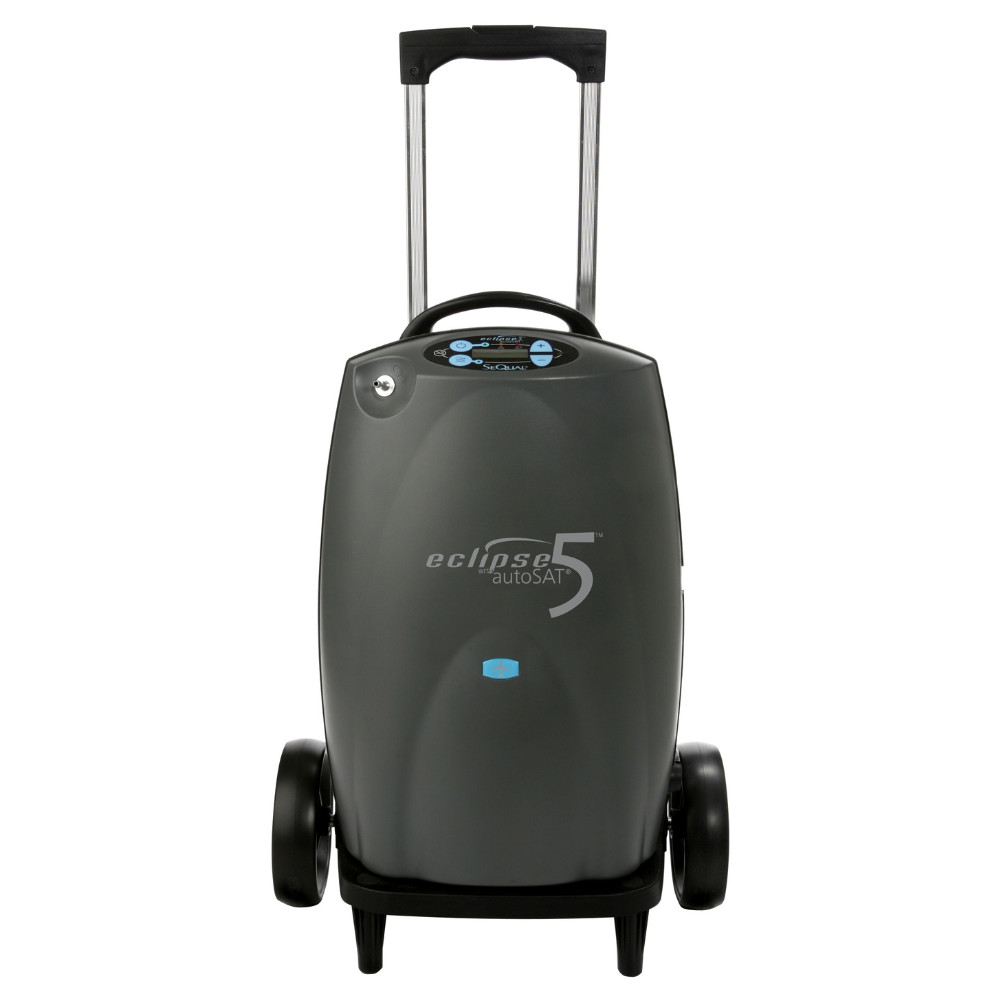

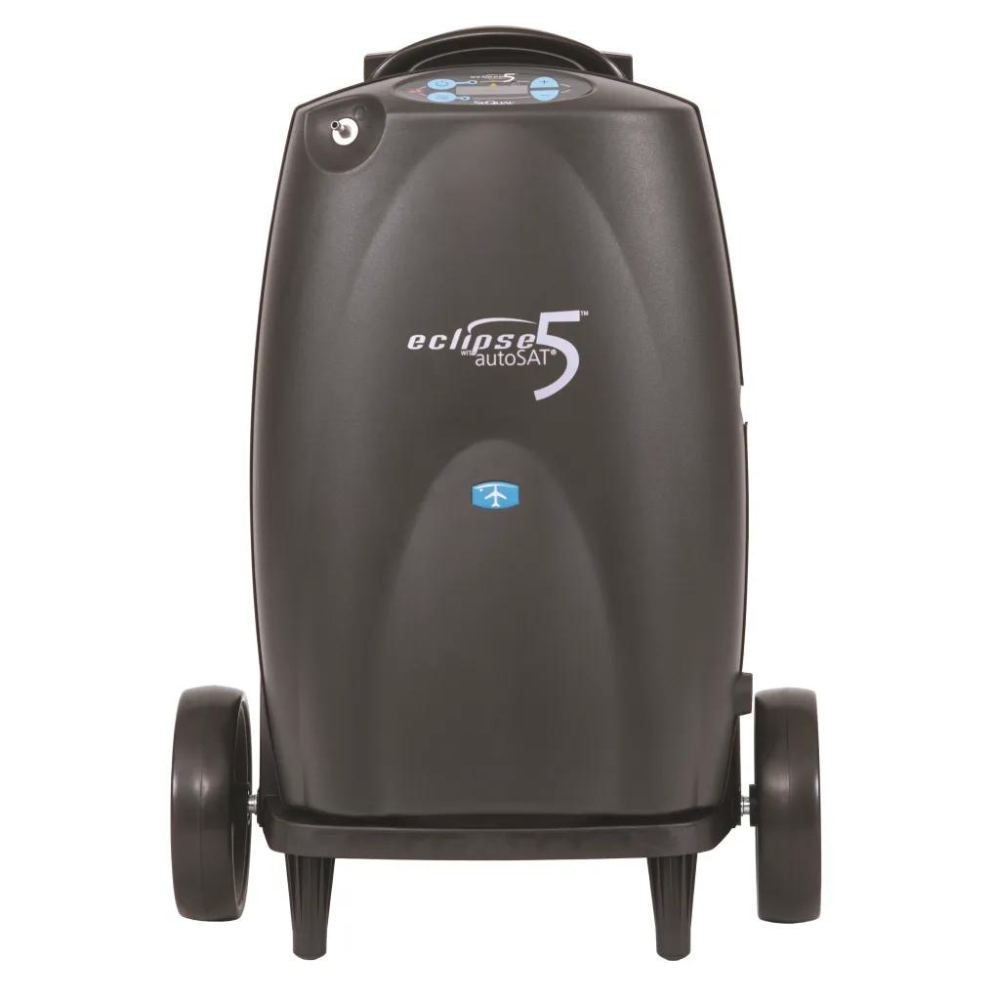

CAIRE Eclipse 5 Portable Oxygen Concentrator

The SeQual Eclipse 5 Portable Oxygen Concentrator (POC) brings portability to patients requiring continuous flow, such as patients that use CPAP and BiPAP treatment.

The SeQual Eclipse 5 POC is equipped with AutoSAT® technology and is capable of producing up to 3 LPM continuous flow and up to 6 LPM in Pulse flow of medical grade oxygen (90% +) which gives freedom for all capacity levels. It also has one of the highest pulse oxygen outputs in the market through 9 pulse settings. Through its interchangeable continuous and pulse flow rates, patients can receive tailored treatments at every activity level and clinical needs.

The SeQual Eclipse 5 POC has a robust and lightweight design, transportable cart with retractable handles for ease of use, which allows it to travel wherever you go. Due to its functional DC power, the SeQual Eclipse 5 POC can be recharged on the go through DC outputs such as vehicles.

The Eclipse 5 is FAA approved for airplane travel, however, we strongly recommend checking this with your airline prior to booking your trip, as airline rules may vary. The SeQual Eclipse 5 POC makes travel easier, with its included multi-voltage supply kit. Please note that you will still require the correct wall socket plug.

Inclusions
1 x Eclipse Portable Oxygen Concentrator
2 x Battery packs
1 x AC Power supply
1 x DC Power supply
1 x Accessory bag
1 x Cannula set
1 x User manual
3 years warranty

Dimensions
Height: 49 cm / 19.3 inches
Width: 31.25 cm / 12.3 inches
Depth: 18 cm / 7.1 inches

Specifications
2 hours of battery at 2 LPM with single battery
18.4 lbs. with battery
Removable rolling cart with adjustable handle
Runs on wall outlet (AC), motor vehicle (DC), or rechargeable battery power
Operating Temperature: 50º F to 104º F (10º C to 40º C)
Operating Humidity: 10% - 95% at an 82.4° F (28° C) dew point
Transport/Storage Temperature: -4º F to 140º F (-20º C to 60º C)
Humidity: Up to 95% Non-Condensing
Electrical: Use no extension cords. Use no electrical outlets controlled by a switch.
Altitude: 0 – 13,123 feet (0 - 4,000 meters)
Placement: DO NOT block the air inlet (top back cover) or the exhaust vent (back bottom left). Place device a minimum of 3 inches (7.5 cm) away from walls, draperies, furniture, etc.
Environment: Must be smoke, pollutant, and fume free.
Operating Time: 24-hours a day when connected to an external AC or DC power source.
Oxygen Concentration: 90%+5.5%/-3% @ sea level
Dimensions: 19.3 high x 12.3 wide x 7.1 deep (inches), 49.0 height x 31.2 wide x 18.0 deep (CM)
Weight: Eclipse 15 lbs., Battery 3.4 lbs.
Power: AC Power (100-240 VAC, 50-60 Hz; DC Power (12V nominal); Battery (Quantity (2) 95 W-Hr battery packs each containing 7.92 gm of lithium content)
Nominal Battery Recharge Time: 1.8 to 5.0 hrs recharge time to achieve 80% capacity (dependent upon the flow)
Alarms/Alerts: Loss of power, Low Battery, Low Therapeutic O2 Output, O2 flow outside normal limits. No Inspiration detected in Pulse Dose Mode, Unit Malfunction
O2 Concentration Indicator: Green Light=Normal Yellow=Caution <85%
Outlet Pressure: Nominal: 7.0 psig Maximum: 14.0 psig
Sound Level: 48 dBA at 3.0 LPM Continuous Flow Mode; 40 dBA at 3.0 Pulse Dose Setting; 59 dBA while alarming
Applied Part: Cannula

The SeQual Portable Oxygen Concentrator is intended for the administration of supplemental oxygen. The device is not intended for life support nor does it provide any patient monitoring capabilities. ALWAYS FOLLOW THE DIRECTIONS FOR USE.

Please note that our Oxygen Concentrators requires a prescription, issued for treatment by a GP or respiratory specialist.
